Configure iSCSI on Windows Server 2012 R2

It should be simple to configure iSCSI on Windows Server 2012 R2 right? While it is not rocket science and really not that difficult at all to configure, it’s also not as intuitive as I think it should be. Therefore I decided to create this post on how to configure iSCSI for a Windows Server 2012 R2 Hyper-V cluster using an HP MSA 1040 as the shared storage device.
Equipment
Shared Storage: HP MSA 1040 (4 NICS)
Servers: Quantity of 2 Hyper-V Hosts (each host has 6 NICS)
Network switches: Quantity of 2 network switches (for redundancy)
Operating System: Windows Server 2012 R2
Storage Network: Each Hyper-V host has two NICS dedicated for the storage (1 NIC cabled to MSA Controller A and 1 NIC cabled to MSA Controller B)
Configure HP MSA 1040 Storage Network
The first thing you must do is configure the storage network. This involves configuring the HP MSA 1040. This post will not cover all the aspects involved in configuring the MSA 1040. The screen shots below are just demonstrating the IP configuration so as to better understand how it ties to configuring iSCSI in this environment.
Log into your MSA 1040 shared storage device

The MSA 1040 comes with dual controllers with two NICS on each controller for a total of four network interface cards (NICs). The first thing you will do when you are ready to configure the MSA 1040 is to run the Configuration Wizard. At some point in the configuration wizard you will be asked to assign IP addresses to the MSA NICs. Please consider configuring a separate “private” IP scheme for the storage network. The storage network should always be isolated from your internal network so that the storage traffic doesn’t interfere with your normal network traffic. Normally, your internal network will reside in the 10.0.0.0 network. You will need to VLAN the ports on your network switch in order to do this. That is beyond the scope of this post. In the example below, you’ll notice that the four NICS were configured as such:
MSA Controller A Port 1 (A1) – 192.168.9.7
MSA Controller B Port 1 (B1) – 192.168.9.8
MSA Controller A Port 2 (A2) – 192.168.9.9
MSA Controller B Port 2 (B2) – 192.168.9.10

From a cabling standpoint, on MSA Controller A, we have cabled port A1 to Network Switch 1 and port A2 to Network Switch 2 for redundancy. We’ve done the same for MSA Controller B. On MSA Controller B, we have cabled port B1 to Network Switch 1 and port B2 to Network Switch 2. We have a total of four different paths going through two network switches for maximum resiliency. We can lose a controller AND a network switch and still maintain connectivity to the storage.
Configure Hyper-V Host Storage Network
As stated in the Equipment section at the beginning of this post, each Hyper-V host server has 6 NICs. We are using 2 of those NICs on each host for the storage network. We are also teaming the two storage NICs. Of course, the storage network on the Hyper-V host must reside on the same network as the MSA 1040 storage network. In our example, that is the 192.168.9.0 network. See the example in the figure below. We have configured the storage network for both Hyper-V hosts as such:
Hyper-V Host 1 (MSA Storage Team) – 192.168.9.3
Hyper-V Host 2 (MSA Storage Team) – 192.168.9.4

Configure MPIO on Hyper-V Host/s
Before you continue, you must add the MPIO (Multi-Patch I/O) which is built into the Windows Server 2012 R2 operating system. To do this, just open Server Manager on each Hyper-V host and select Manage, then Roles and Features. Complete the Add Roles and Features wizard to install the MPIO feature to your Hyper-V Host/s. After the MPIO feature is installed, configure MPIO by opening Server Manager, Tools, then MPIO. Select the Discover Multi-Paths tab, check the Add support for iSCSI devices and select OK. This will require a REBOOT of the Hyper-V Host server.

Configure iSCSI Initiator on Hyper-V Host/s
Now it is time to configure the iSCSI Initiator on the Hyper-V host server. To do this, from Server Manager select Tools, then iSCSI Initiator.

On the Targets tab, enter in one of the IP addresses you assigned to the MSA 1040 NICs in Configure HP MSA 1040 Storage Network section at the beginning of this blog post. In the example below, we used the first IP address of 192.168.9.7 and selected Quick Connect. It will discover the iSCSI target and display it in the Discovered Targets box and the status will state “Connected” (see image below).

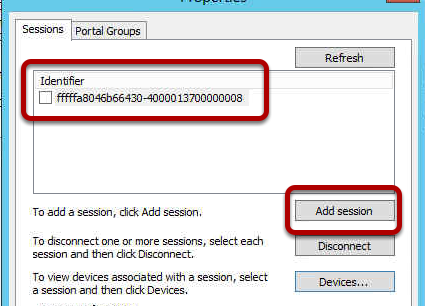

Once the target is discovered, select Properties for the connected iSCSI target. You will notice the image below. What are we seeing here? Each Identifier represents a NIC or path on the MSA 1040 storage. Remember, in our configuration, we have 4 NIC’s on the HP MSA 1040 (2 on MSA controller A and 2 on MSA Controller B). You must add each Identifier manually by selecting Add Session.

Once you’ve selected Add Session, you will be presented with the Connect to Target screen below. Make sure you check the boxes below, especially the Enable multi-path checkbox and select Advanced.

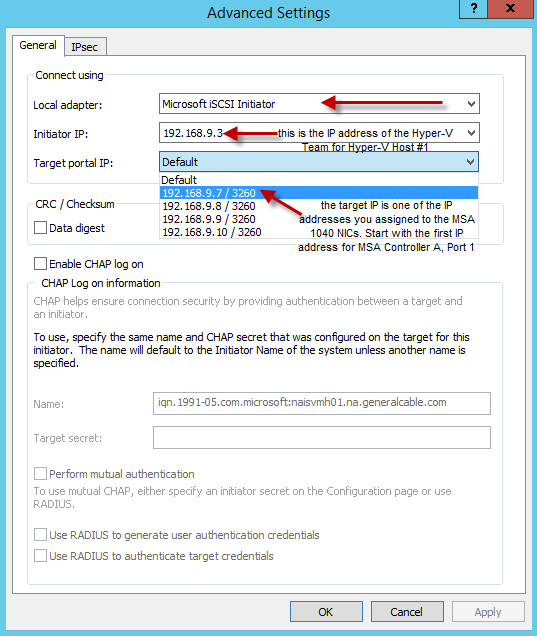

In the Advanced Settings, for the Local adapter select Microsoft iSCSI Initiator from the drop-down menu. For the Initiator IP, select the Hyper-V Host 1 MSA Storage Team (192.168.9.3 in this example). You configured this in the Configure Hyper-V Host Storage Network section earlier in this blog post. For the Target portal IP, select the first IP address of the MSA 1040 storage (192.168.9.7 in this example). You configured this in the Configure HP MSA 1040 Storage Network section earlier in this blog post.
* You will need to do this for all 4 NICs/paths on each Hyper-V Host.

At this point you are pretty much done if you are OK with all the default settings. However, if you choose to customize the configuration each of the devices you just added above, select Devices from the iSCSI Initiator Properties screen (below).

On the Devices screen, you will notice all the disks or LUNS associated with the devices (sessions) you added. So what are we looking at? Notice the GREEN highlighted areas in the image below for Disk 1 and Disk 2. Don’t worry about LUN 0. Since our example included 4 NICs or paths on the MSA 1040 storage device, you will have 4 disks or LUNS for each device. In the example below, you don’t see the 4th device because you would need to scroll down. So why are there two disks associated with each device (Disk 1 and Disk 2)? The reason for this is because before we configured MPIO and iSCSI on the Hyper-V host, we presented two disks/LUNS from the MSA 1040 storage unit to the Hyper-V host server. We presented a Quorum LUN and a Data LUN. This is not relative to the iSCSI configuration but I thought it was important to understand what you are viewing in the image below.

To configure the MPIO Policy for each disk/LUN, select the disk, then select MPIO. You can configure the MPIO Policy several different ways. The default is Round Robin With Subset. This is what we used in our configuration example.


If you selected the Details for each Path ID, you’d notice that each one with have a different Target Portal IP address (one for each NIC on the MSA 1040).

Windows 2012 - How to configure Multi Path iSCSI I/O

This is how to configure Multi Path I/O for iSCSI on Windows 2012 Server. I want to use this for our Hyper-V implementation to increase through put and redundancy.

Setup iSCSI NICs

In this server I have eight NICS, I have chosen to use two NICS for iSCSI and here you can see I have chosen to use one onboard Broadcom NIC and one PCI-e slot Intel NIC. Each NIC is configured with an IP address in the subnet of the storage network. In this case it is
10.12.0.40 255.255.255.0
10.12.0.41 255.255.255.0
The SAN is a HP MSA P2000 G3 iSCSI LFF and I have configured the Host NICS as
10.12.0.21 255.255.255.0
10.12.0.22 255.255.255.0
10.12.0.23 255.255.255.0
10.12.0.24 255.255.255.0
10.12.0.25 255.255.255.0
10.12.0.26 255.255.255.0
10.12.0.27 255.255.255.0
10.12.0.28 255.255.255.0

NIC Configuration

On each NIC you can remove services that are not required for iSCSI so I have unchecked Client for Microsoft Networks and File and Printer Sharing for Microsoft Networks.

Set IP Address

I will be using IP v4 for this implementation.

Confirm IP Address

Use static IP addresses to reduce need for DHCP and network overhead for that protocol. You do not need a gateway if the storage network is not to be routable. Each NIC needs to not use DNS to again improve performance so choose the Advanced option.

Do not register in DNS

Uncheck the option for Register this connections addresses in DNS. We do not want any IP from the iSCSI network in DNS.

Advanced NIC Settings

Each NIC has advanced settings and some relate to Power Management, we do not want any interruptions in the iSCSI network so we will change the advanced settings with the Configure option.

Power Management

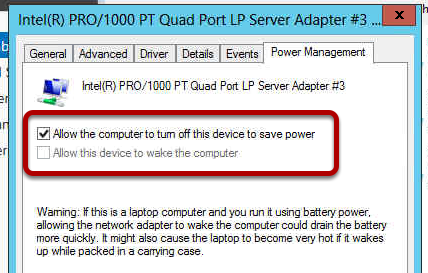

Uncheck the option Allow the computer to turn off this device to save power.

Add MPIO Role

Now we will add the Multi Path Input Output (MPIO) role to the server so that we can use MPIO. From the Server Management dashboard choose the Manage Add Roles and Features option.

Add Features

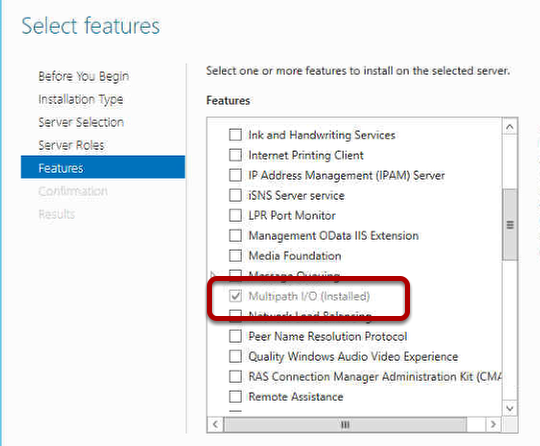

Follow through the add roles and features and then at the Select Features option choose Multipath I/O. In this example I have already installed this feature which is why the (Installed) is displayed. The server will now installt he MPIO feature.

MPIO Tools

Once the feature is installed you can then choose Tools MPIO from the Server Management Dashboard.

MPIO Properties - Immeadiate Reboot Required

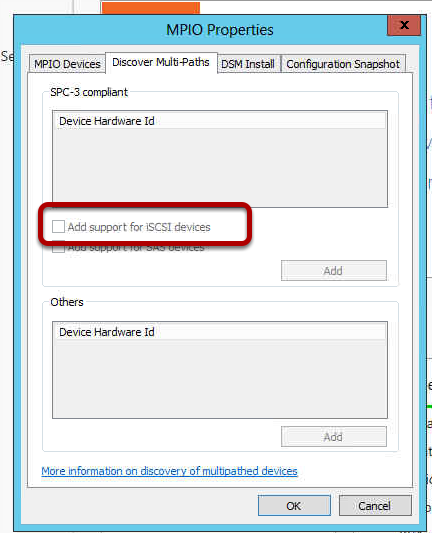

In the MPIO dialog choose the Discover Multi-Paths tab and then check the Add support for iSCSI devices option. The server will now require an immeadiate reboot so be prepared.

iSCSI Initiator

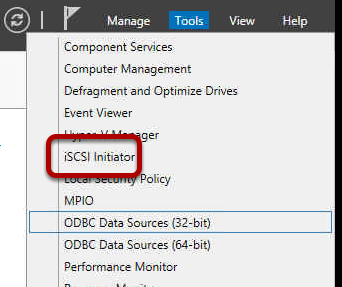

Now the server has rebooted we are ready to setup iSCSI, this is done from the Server Management and Tools, iSCSI Initiator.

Connecting to a Target

iSCSI works be connecting to a Target, the target is most likely a disk SAN or similar, in our case it is the HP MSA P2000 G3 iSCSI SAN. A target is an IP address that is configured on the iSCSI port on the SAN. 10.12.0.20 is the first IP address assigned to my Controller A iSCSI A1 port so I choose the Quick Connect option.

Quick Connect

The quick connect will now communicate to the SAN using the iSCSI NIC on the server and the iSCSI port on the SAN. It negotiates and we see under the Discovered Targets section the IQN of the SAN. You can see in the IQN name the hp:storage.p2000 text, this is part of the IQN name of our SAN. You can check this information on your iSCSI Storage Device as these will be different across manufacturers. Click Done to return to the iSCSI Initiator.

Add the first Multi Path

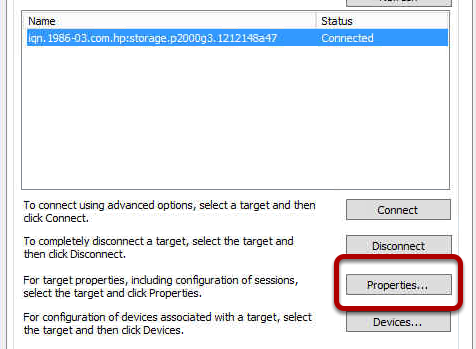

Select the target and then click on Properties to add the next path to the iSCSI Storage Device.

Sessions

This dialog will show the existing sessions to the iSCSI Storage Device, we have only added one session so far so we will only have one path to the iSCSI Storage Device and if we removed the network cable for the iSCSI NIC we would lose connection to the target. What we want is to be able to lose one connection and know that the second iSCSI NIC can carry on the iSCSI traffic. So choose Add Session to add the second iSCSI session.

Connect to Target

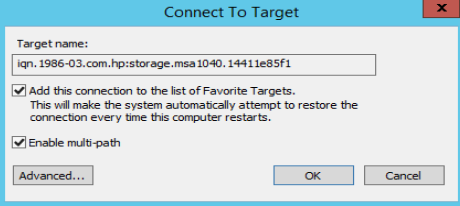

When you add the new session you are asked do you want to use Multi Path,, check the Enable Multi-Path option and then choose the Advanced option.

Advanced Settings

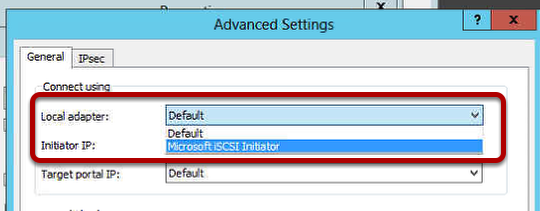

In this dialog we are going to choose which type of adapter we are going to use, as we have no Hardware Based Adapters (HBA) we will use the Microsoft iSCSI Initator which is software based so select this from the Local Adapter dropdown.

Intiator IP

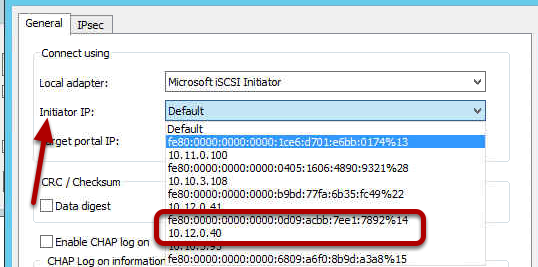

From the Initiator IP dropdown choose the IP Address you have assigned to the second iSCSI NIC, in this case this is the IP address 10.12.0.40. This will now connect the second iSCSI NIC to our target so that both iSCSI NICS can communicate with the iSCSI Storage Device. Choose OK.

Confirm MPIO for each Session

A session will now be created with a long GUID, check the new session and then click on the Devices button to see what devices are connected in this session. We are looking to see two devices, one for each of the iSCSI Target IP addresses.

Devices

I recommend that you create a LUN on your iSCSI Storage Device in advance as you then have a device to see as connected, here I can see the disk I have created on LUN 0. I now choose the MPIO button.

Device Details

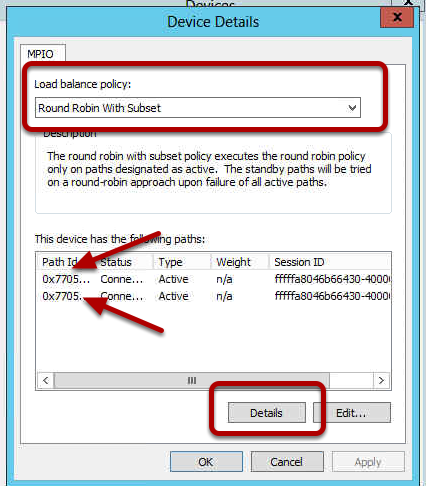

This displays the MPIO details and the Load Balance Policy. This is the way that the MPIO trys to communicate with the iSCSI Target, we would like it to Round Robin. This means that the first IP address is sent a packet and then the next and so on until the packets come round to the start again. The benefit here is that all paths get used and you can have multiple packets sent at once so you get better performance. If a path is down due to a cable failure or swich failure the round robin notices this and ignore the path and sends the packet on the next active path. So you have a high performance and redundant iSCSI infrastructure.
To see the IP addresses used for a path, click on a path and then choose the Details button.

MPIO Details

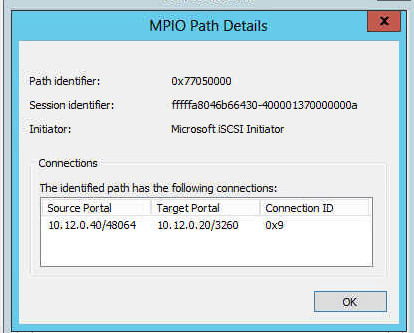

In the details of the path you can see the Source and Target IP address details. Here we can see the Source is the iSCSI NIC on the server 10.12.0.41 and the target is the IP address of Controller A iSCSI A1 port 10.12.0.20.

MPIO Details on second path

On the second path you can see the Source is now the other iSCSI NIC on the Server and the Target is the Controller A iSCSI A1 port so we have two paths now to this target.

Confirm the MPIO

You can confirm the MPIO in use with a command line tool called mpclaim. Here I have ran the command mpclaim -v c:\config.txt This will output the MPIO configuration in verbose mode to a text file so it is easy to read.

Text File Output

I open the Config.txt file and I can see the MPIO states we have 2 Paths so I know the paths I have created are live. So all I need now is to go do this all again for each target IP addresss on my iSCSI Storage Device to built the multiple paths.
